RNLI Trent Class Wheelhouse Brief
Duration: 5 Days

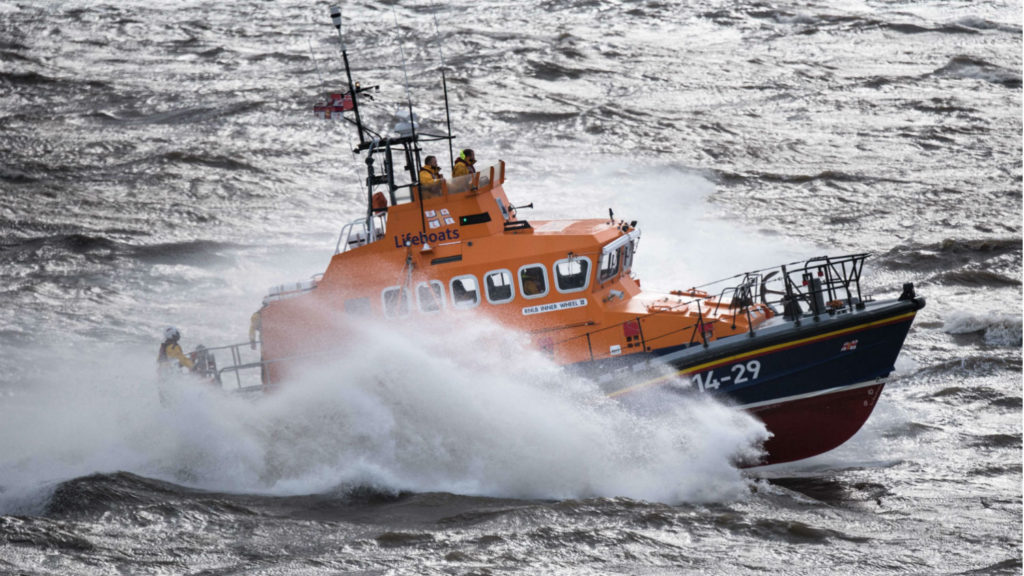

Canary Designs partnered with Nottingham Trent University to undertake an ergonomic review of the Trent Class wheelhouse. The Trent class boat was introduced in 1984 to replace the Arun and Waveney with an operating range of 80km and a top speed of 25 knots, the Trent used in the study was based in Ballycotton, southern Ireland.
Method
Due to the age of the Trent, there were no CAD models available for the wheelhouse, Canary Designs organised the 3D scanning of the wheelhouse to produce a CAD model accurate to plus or minus 2 mm. The 3D scanning was conducted by OR3D limited a specialist company based in Bristol and Chirk.
The site visit then took place at Ballycotton, to gather representative samples of anthropometric data for the crew, video observations and unstructured interviews to understand how the stakeholders interacted with the individual crew stations.

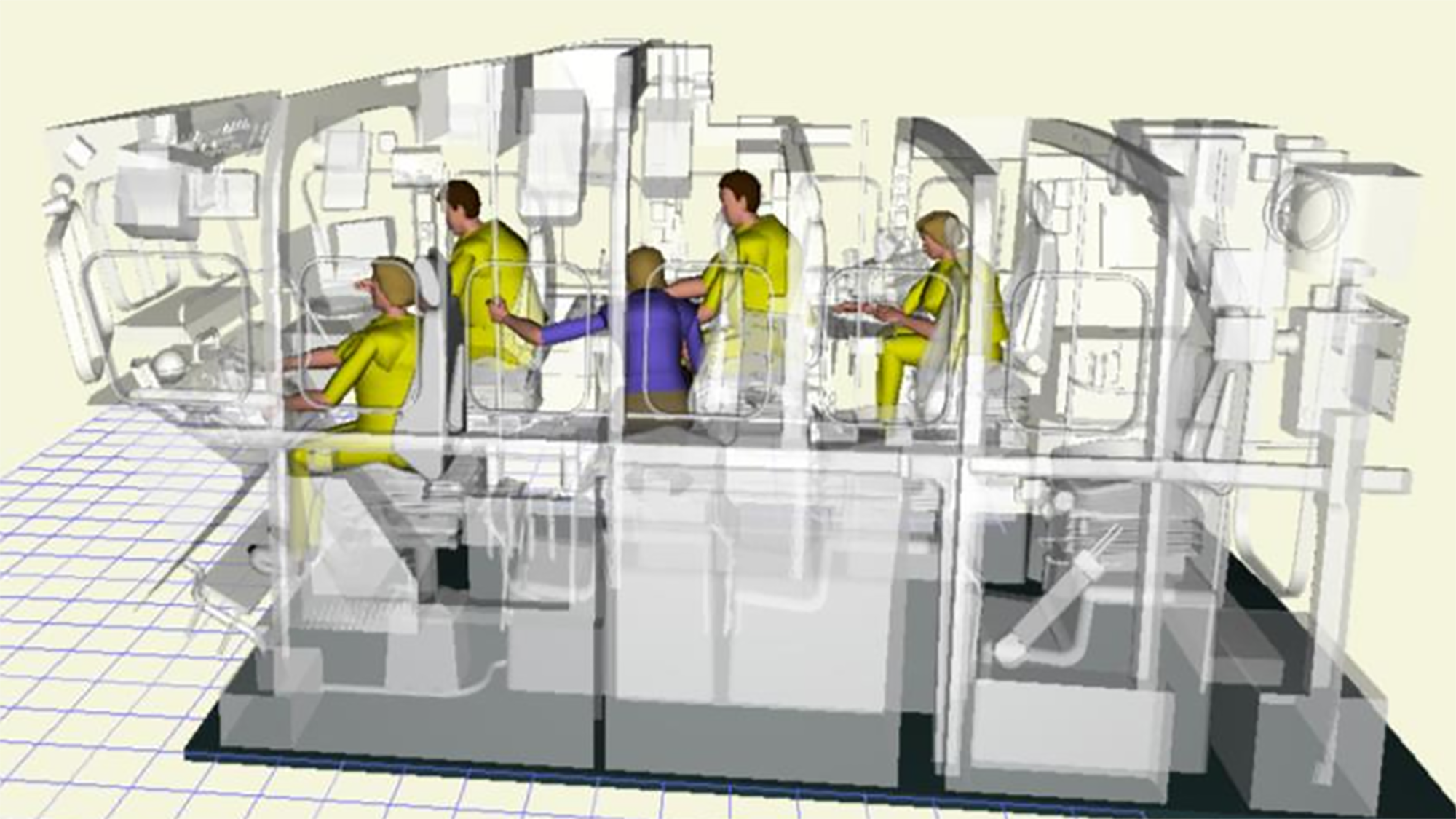

The anthropometric data was then used to build digital human manikins that reflected the stakeholder’s individual measurements such as 40th percentile stature with 95th percentile arm length for one particular individual. The video observation and interviews were then used to model up stakeholder interactions at each crew position.
Outcome
Canary Designs produced a technical report that identified short, medium, and long-term design solutions. The shortfalls were identified, and proposed solutions modelled up in CAD. The client has ended up with a 3D CAD model of the Trent, anthropometric data for their crew, and an insight into how they interact with the boat when responding to a shout.
